Hollow Block & Solid Making Machine

Home/Products /Hollow Block & Solid Making Machine
  • Robust construction
  • Minimum maintenance
  • High performance
  • Easy installation
  • Size: 850 × 450 × 40 mm
  • Power: 21 kw
  • Capacity: 960 pcs / h
  • HBM GD1060
  • HBM GD860
  • HBM GD860 SINGLE PHASE MACHINE

We are the One and Only Manufacturer of FULLY AUTOMATIC MACHINES in India. We Designed Various New Models in Fully automatic HOLLOW BLOCK MACHINES.

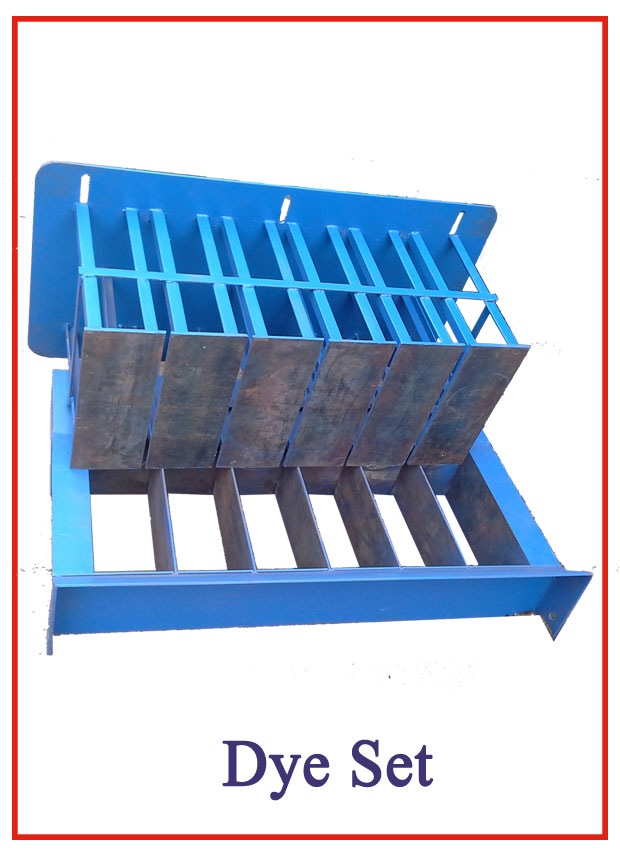

An egg-laying type machine on wheels, this Hydraulic Operated Concrete Block Making Machine will lay the block on the concrete floor and move to the next laying space. By fixing different types of concrete mould and ram into the machine, any type of concrete block can be produced with consistent quality. This machine we can be fitted with Single Vibrator (2 HP), Double Vibrator (3 HP) and Treble Vibrator (4 HP).

Specifications For Hollow Block & Solid Making Machine

HBM GD1060 MODEL

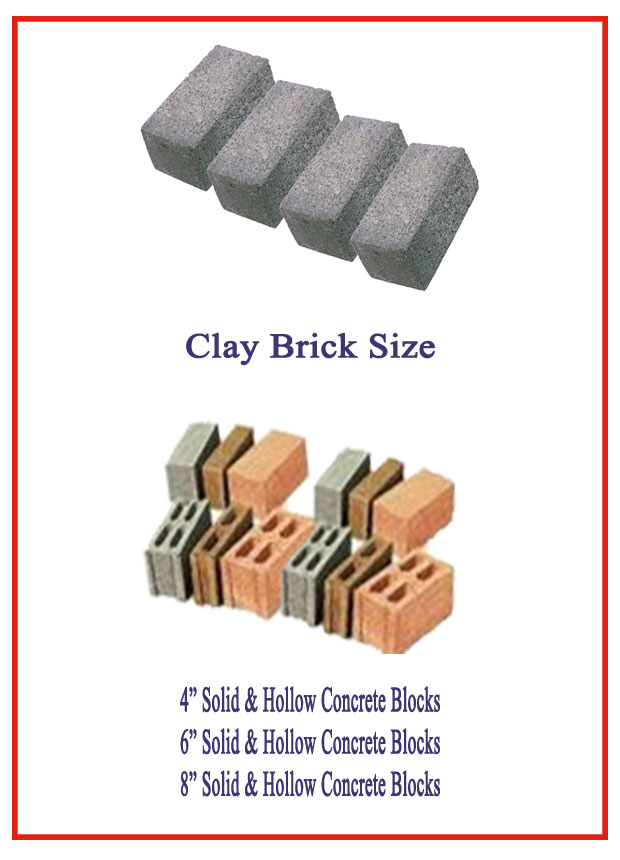

Product Capacity: 4"Per Stroke 10 No.s Per Hour 500-600 No.s
6"Per Stroke 6 No.s Per Hour 400-450 No.s
8"Per Stroke 5 No.s Per Hour 250-300 No.s
Power Capacity: Hydraulic motor 3HP 3Phase 440v
Machine Moving Motor 0.5HP 3Phase 440V
Vibrator motor 2HP 3Phase 440V
HBM GD860 MODEL
Product Capacity: 4"Per Stroke 8 No.s Per Hour 400-480 No.s
6"Per Stroke 5 No.s Per Hour 300-360 No.s
8"Per Stroke 4 No.s Per Hour 200-240 No.s
Power Capacity: Hydraulic motor 3HP 3Phase 440V
Machine Moving Motor 0.5HP 3Phase 440V
Vibrator motor 2HP 3Phase 440V
HBM GD860 SINGLE PHASE MODEL
Product Capacity: 4"Per Stroke 8 No.s Per Hour 400-480 No.s
6"Per Stroke 5 No.s Per Hour 300-360 No.s
8"Per Stroke 4 No.s Per Hour 200-240 No.s
Power Capacity: Hydraulic motor 2HP 1Phase 230V
Machine Moving Motor 1HP 1Phase 230V
Vibrator motor 1HP 1Phase 230V
